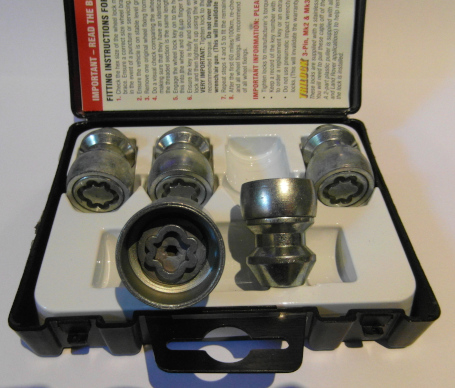

EVO 5 Lock Nuts Bulge Acorn style and Ford OE

EVO5 locks:

Thatcham Quality Assured Category 4 compliant (UK Automotive insurance approved)

Manufacturing site certified to IATF6949 and ISO14001 quality standards

Supplied to over 20 vehicle manufacturers as OE approved parts.

Popular part details

070/5 M12mm 1.5 thread,60 degree taper, 19mm key hex, internal thread depth 26mm , overall height 34mm adapter outer diameter 29mm

089/5 1/2'' UNF ,60 degree taper,19mm key hex,internal thread depth 26mm, overall height 34mm,adapter outer diameter 29mm

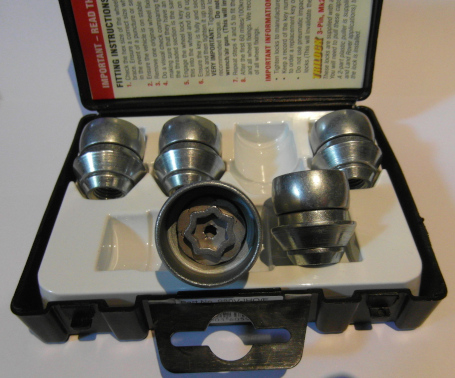

980/5 M12mm1.5 FORD OE type wheel nut,60 degree taper 28mm wide,19mm adapter hex, 20mm internal depth,29mm overall height, adapter 29mm.

892/5 M14mm 1.5 60 degree taper, 21mm key hex, 30mm internal thread depth, 37.5mm overall height, adpater 29mm wide.
